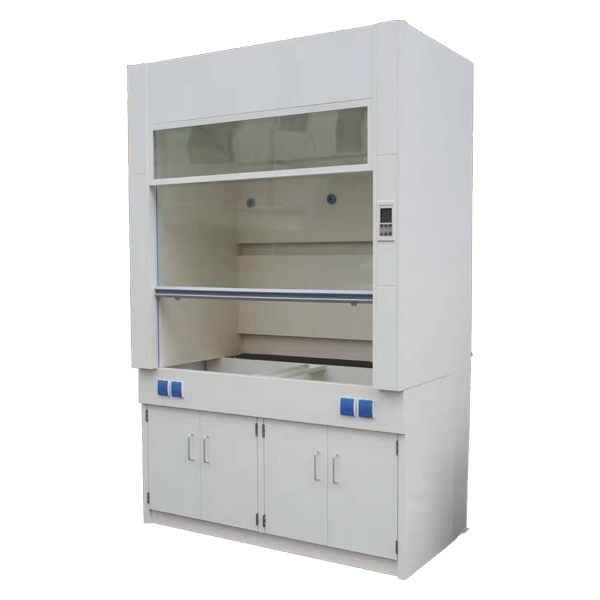

All Steel Fume Hood
All Steel Fume hood
Size(outside diameter L*W*H mm):1200/1500/1800*850*2350
Base Cabinet:Qualified 1.0- 1.2 mm galvanized sheet construction
cabinets finished in 0.07 mm safety epoxy enamel perfect for resisting corrosion
And heat.It can store the acid and alkali chemical product.The structure is Floor standing.
Worktop: 12.7 mm black epoxy resin.
Interior materials:All interior surface of fume hoods are made of
Fiberglass reinforced polyester
3-section anti-Corrosive baffle
5 mm safety glass with sash opening
Down cabinet:Left cabinet is flammable cabinet,right cabinet is standard.
Accessory: 4*waterproof socket ；1* centrifugal fan ;1*high quality PP
sink cup;1*LCD pancal etc. System:Pulley type elevating system
Specific Standards: Available Opening Height : 0—9200 mm, Face
Velocity : 0.4—0.6 m/s, Noise :<60 db, Powder Supply AC 110 V±10%,60 Hz
Advantage:Safety double- layer wall design can be achieved on the
panel control gas/liquid valve outside of the work space; Increase the
safety of the operator;Modular panel is convenient and flexible, which
can satisfy different customers’needs.
VAV – Variable air volum and Face velocity monitor and sash height monitor for your reference
