Analytical Balance
The visual appearance of the product is blent into the simple concept, stylish and
generous.Specially makes the fine pouring cast- aluminium outer covering, so
as to enhance the balance of the anti-static anti-jamming capability.The panel with
five operational button, Sliding glass windscreen provide big space, insightful vision
and operate easily. We use high precision sensor to keep the weighing more
fast and stable.
² Magnet /Loadcell sensor keep weighing stable and fast
² Full range tare, Counting, Units choose …
² RS 232 Interface can connect the computer and princter.

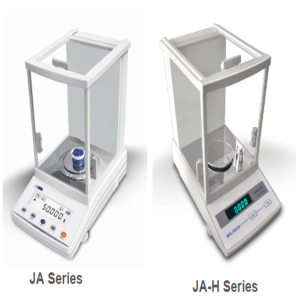

² PS: JA Use magnet, JA-H use loadcell
| MODEL |
JA203 |
JA303 |
JA503 |
JA603 |
JA103H |
JA203H |
JA303H |
| CAPACITY |
200g |
300g |
500g |
600g |
110g |
210g |
310g |
| CLASS |
I I |
||||||
| RESOLUTION |
0.001g (1mg) |
||||||
| REPEATABILITY |
±0.002g |
||||||
| LINER |
±0.003g |
||||||
| STABLE TIME |
≤3s |
||||||
| OP.TEMP |
17.5℃～22.5℃ |
||||||
| PAN SIZE |
Ф80 / Ф90mm |
||||||
| DEMENSION |
340*215*350（L×W×H）mm |
||||||
| POER |
Power Line |
||||||
| CAL.METHOD |
EXTERNAL |
||||||
| N.WEIGHT |
6.5kg/5.0kg |
||||||
| G.WEIGHT |
10.0kg/7.5kg |
||||||
| PACKING SIZE |
470X320X490（L×W×H）mm |
||||||
| INTERFACE |
RS232(Option) |
||||||
