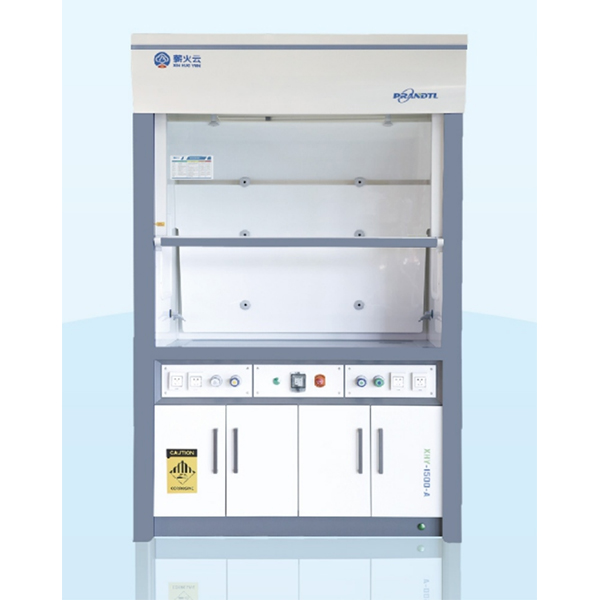

Intelligent Fume hood
Sateri Group is a research and development institution focusing on safe laboratory fume hood, committed to creating the world’s leading fume hood products, to provide a healthy and comfortable research and development environment for the laboratory.
The company always adhere to the user safety as the center, uphold the enterprise philosophy of “only for laboratory health”, into the product research and development, design, to the international industry high-end standards as the quality standard, to provide users with high efficiency, energy saving, high quality and high-performance design products, to create an ideal experimental environment.
Intelligent fume hood, fume hood VAV intelligent control panel, fume hood VAV control system is a high-configuration fume hood, this type of internal air supply fume hood is designed by our company with a unique mezzanine air supply structure, which fully protects the outdoor 100% of the air is added to the inside of the fume hood and directly discharged outside, so that the air added from the room does not affect the internal environment of the laboratory, so that the indoor airflow is balanced, and it will not cause the air and temperature in the laboratory when the fume hood is used. Great loss, thereby greatly reducing laboratory energy consumption and air loss, making the experiment maintain a relatively stable environment, thereby achieving the purpose of energy saving and environmental protection, greatly improving the comfort and environmental protection of the laboratory.
Specification | Model | Model | Model |
Fume hood parameters | PRANDTL-S | PRANDTL-A | PRANDTL-PP-S |
Manufacturer | Sateri Group | Sateri Group | Sateri Group |
Brand | PRANDTL | PRANDTL | PRANDTL |
Reference Standard | ASHRAE、EN14175. JB/T6412 JB/T222 | ASHRAE、EN14175、JB/T6412 JB/T222 | ASHRAE. EN14175. JB/T6412 JB/T222 |
Patented technology | Circumferential air supply double extension system | Circumferential air supply double extension system | Circumferential air supply double extension system |
Safety performance | US:0.00PPM EU>0.01PPM | US:0.00PPM EU:>0.01PPM | US:0.00PPM EU:>0.01PPM |

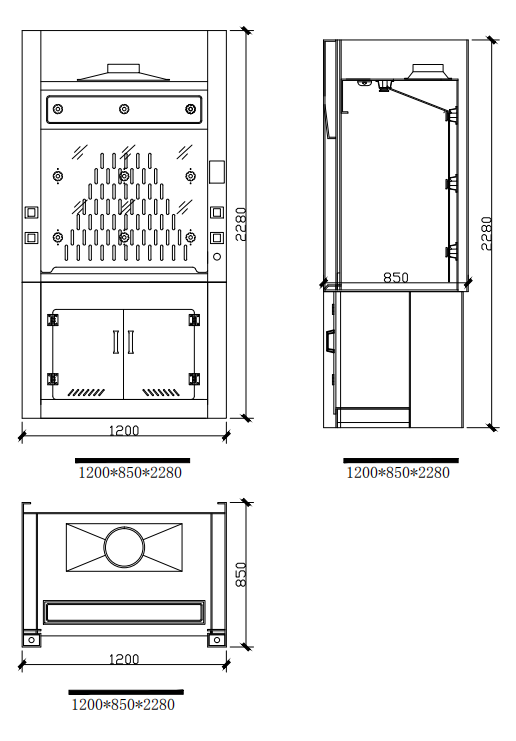

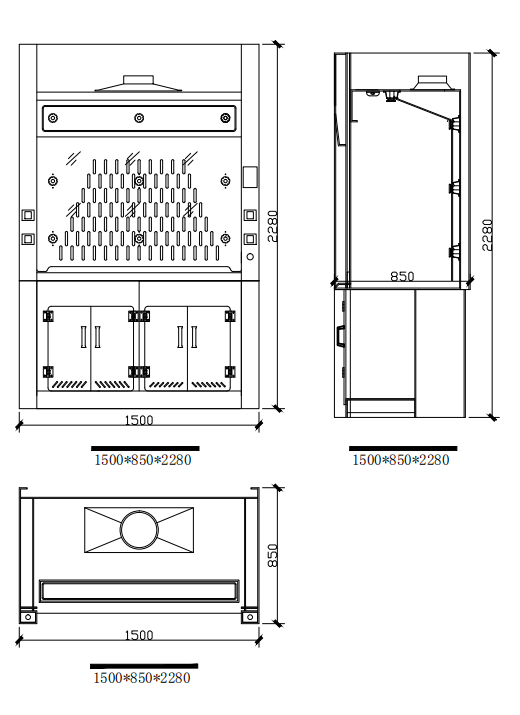

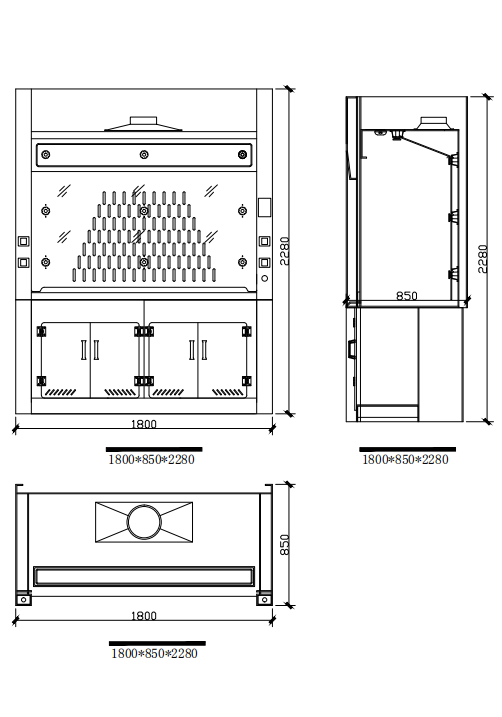

Size mm | 1200/1500/1800 | 1200/1500/1800 | 1200/1500/1800 |
Face velocity | 0.3m/s | 0.3m/s | 0.3m/s |
Expiration date | One Year | One Year | One Year |
Depth mm | 850,900 | 850,900 | 850,900 |
High mm | 2350 | 2350 | 2350_ |
Inner size mm | 1038/1330/1638 | 1038/1330/1638 | 1038/1330/1638 |
Inner High mm | 1180 | 1180 | 1180 |
working depth mm | 870 | 870 | 870 |
Option Demand | PP sink & Faucets | PP sink & Faucets | PP sink & Faucets |
Exhaust demand m3/h | 558/731/880 | 558/731/880 | 558/731/880 |
loss of pressure pa | 27pa | 27pa | 27pa |
Power V | 220V&380V | 220V&380V | 220V&380V |
Light Lux | Min 500Lux | Min 500Lux | Min 500Lux |
Internal lining | Ceramic fiberboard | Phenolic compact laminate | PP plate |
Guide plate | Ceramic fiberboard | Phenolic compact laminate | PP Plate |
Worktop | Ceramic plate | Ceramic plate | Ceramic plate |
Front frame | Profiles spraying | Profiles spraying | Profiles spraying |
Back cabinet | Anti-corrosion coating of metal | Anti-corrosion coating of metal | PP Plate |
Down Cabinet | All steel anti corrosive coating | All steel anti corrosive coating | All steel anticorrosive coating |
Size(mm) | 1200/1500/1800*850*850 | 1200/1500/1800*850*850 | 1200/1500/1800*850*850 |
Modular functional partition | Emergency stop switch Schneider | Emergency stop switch Schneider | Emergency stop switch Schneider |
Power | External/Internal power socket | External/Internal power socket | External/Internal power socket |
Water/air value | Optional | Optional | Optional |
Socket | Four pcs of sockets | Four pcs of sockets | Four pcs of sockets |
Safety Door Control system | Optional | Optional | Optional |
Bypass diversion system | Air wing diversion system | Air wing diversion system | Air wing diversion system |
Product Size | 1200/1500/1800 | 1200/1500/1800 | 1200/1500/1800 |
GW (KG) | 280/330/390 | 280/330/390 | 280/330/390 |
Exhaust diameter | 250 & 315 | 250 & 315 | 250 & 315 |
