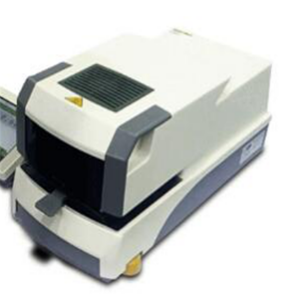

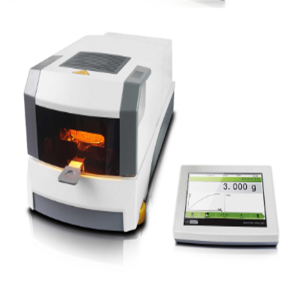

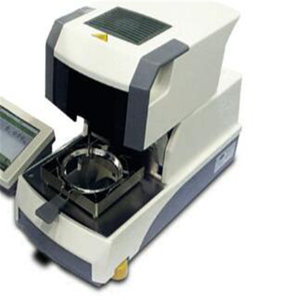

Mositure Analyzer
|
ST-MS Series |
|||||||
| Mode |
ST-100MS |
ST-100MS(plus) |
ST-200MS |
ST-200MS(plus) |
|||
| Range (g) |
110g |
210g |
|||||
| Readability(g) |
0.001g |
0.001g |
|||||
| Operating Temp |
5℃-35℃ |
||||||
| Pan Size |
Ø100mm |
||||||
|
|
|||||||
| Heat Source |
Halogen Lamp |
||||||
| Temp.Sensor |
PT 100 |
||||||
| Temp. Range |
40℃-230℃ |
||||||
| Temp.Step |
1℃ |
||||||
|
|
|||||||
| Moisture Range |
0.00%-100.00% |
||||||
| Moisture Readability |
0.01% |
||||||
| Dry Residual Range |
100.00%-0.00% |
||||||
| Dry Residual Readability |
0.01% |
||||||
| ATRO |
100%-999% |
||||||
| ATRO |
0%-999% |
||||||
|
|
|||||||
| Temp Setting |
40℃-230℃ By 1℃ Step |
||||||
| Time Setting |
1-99min by 10 s |
||||||
|
|
|||||||
| Number Of Storage |
20 |
||||||
| Number Of History |
20 |
||||||
|
|
|||||||
| Heater |
220V ±15% 50HZ/ 110V±15% 60HZ 400W |
||||||
| Balance |
Input: 220V 50HZ/110V 60HZ Output:9V |
||||||
| Machine |
Input: 220V 50HZ/110V 60HZ Output:24V (Dual-drive) |
||||||
|
|
|||||||
| Host Dimension |
215X195X415mm |
||||||
| Indicator Dimension |
200X75X135mm |
||||||
| Operation Height |
275mm |
||||||
| The Chamber Height |
35mm |
||||||
|
|
|||||||
| Display |
7 inch touch panel |
||||||
| Interface |
RS232/RJ45/USB… |
||||||
| Communication Mode |
Cable |
Wireless |
Cable |
Wireless |
|||
| Rechargeable Battery |
No |
10,000mAh |
No |
10,000mAh |
|||
|
|
|||||||
| Calibration |
External Calibration |
|
|||||
MS Series Moisture Analyzer Functions：
1. Automatic open the heating chamber. Keep the weighing and test more stable.
2. 7 inch HD display，moisture analysis curve，moisture content%/dry weight %/dry weight direct display；
3. 40-230℃ limit heating temperature；
4. The test hight 35cm ；
5. The window can look the test sample；
6. 20 groups of setting address；
7. 20 groups of history can check and print；
8. Max weight can choose 200g；
9. HBM weighing sensor；
10. 4 sets of stainless steel；
11. The special material case suit for high temperature test；
12. Appearance and structure to obtain a number of patents；
13. Easy cleaning for open test chamber；
14. Easy fix and repair design；
15. Intelligen system can protect operation not crush by machine；
16. New system update easily.
